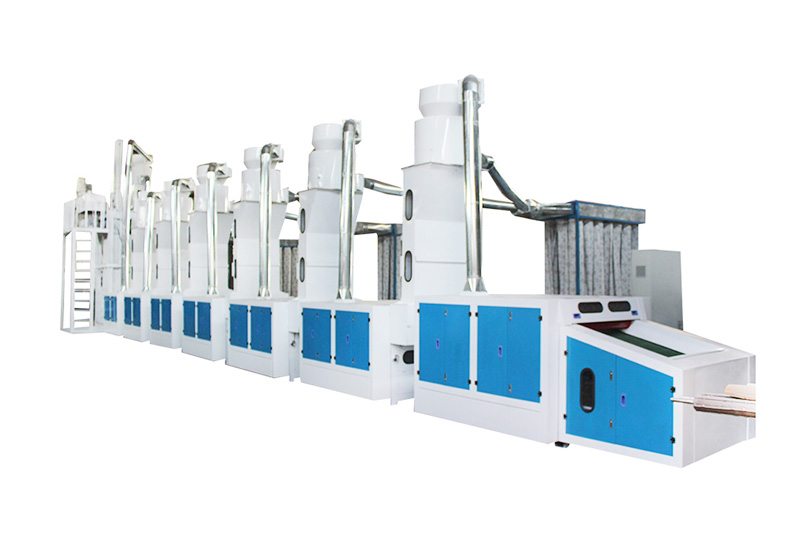

Unit Type Automatic textile waste Opening Machine

Product Description


The unit-type automatic opening and carding machine abolishes the traditional processing technology and adopts the internationally advanced U-shaped tooth rotary rolling and double roller opening design to achieve continuous high-speed production and adjustable frequency conversion control of the output level. Hold the cart and stop feeding. The product design is advanced, economical and applicable, and has low maintenance cost.

This product can quickly open various scrap cloth ends and cotton yarn waste. The machine consists of 4 machines. 600mm-500mm-500mm-400mm opening machine has the advantages of large output and no fiber damage. The recycled fibers are most suitable for making non-woven felts. At the same time, the machine can be equipped with a cutting machine, which can cut various large pieces of fabric, and can be equipped with a dust filter unit to collect dust and fiber impurities, which greatly improves the factory operating environment. It can also be equipped with a baling machine to achieve independent packaging into bundles.

Product Model

Model One:

Unit Type Automatic Opening Machine

Product Description:It mainly use for the recycling of garments leftover、waste yarn、waste socks、old bedding and so on.

Technical Data:Final product:Textile recycled fibers Roller diameter: 600mm-500mm-500mm-400mm Power: 141kw Machine Dimension: 36000(L)×7000(W)×5200(H)mm

Production Line Composition:Seven units opener-hopper-hydraulic automatic baling machine-dust filter-electric control panel.

Order

Model Two:

Unit Type Automatic Opening Machine

Application:It mainly use for the recycling of garments leftover、waste yarn、waste socks、old bedding and so on.

Technical Data:Final product:Textile recycled fibers Roller diameter: 600mm-500mm-500mm-400mm Power: 115kw Machine Dimension: 21000(L)×7000(W)×5200(H)mm

Production Line Composition:Four units opener-hopper-hydraulic automatic baling machine-dust filter-electric control panel.

Order

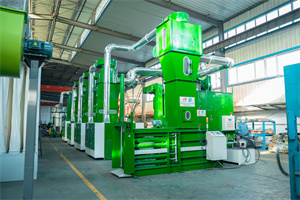

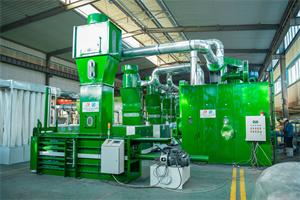

Detail Image

Related Configuration

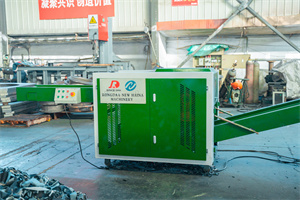

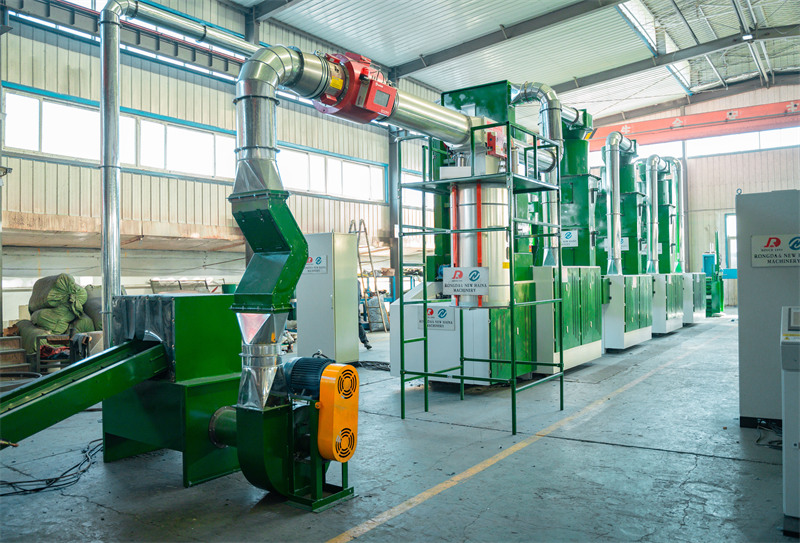

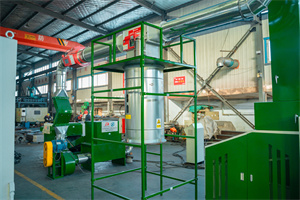

Cutting Machine Spark Detector Baler Machine Dust Filter Unit
